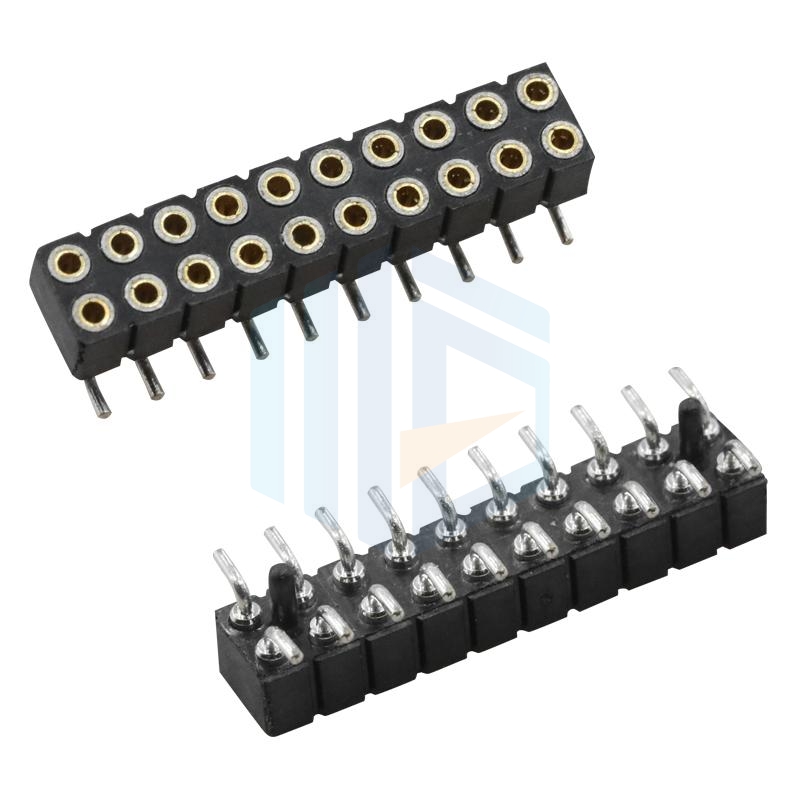

Mother (round needle)Model：FH-1.27-D2XXSpecifications：6.4*1.27*needle position
- Current rating: 1Amps
- Mating pin ∅: 0.305/0.483mm
- -Insertion: 0.5N typ
- -Withdrawal: 0.2N typ
- Mechanical life: min 500cycles
- Contact resistance: max 10m Ω
- Dielectric strength: min 1000V RMS
- Operaling temperature: -40°C to+105°C
- Soldering temperature: +255°C
- notes： Support customization
Free Sample Application
