PDF Download

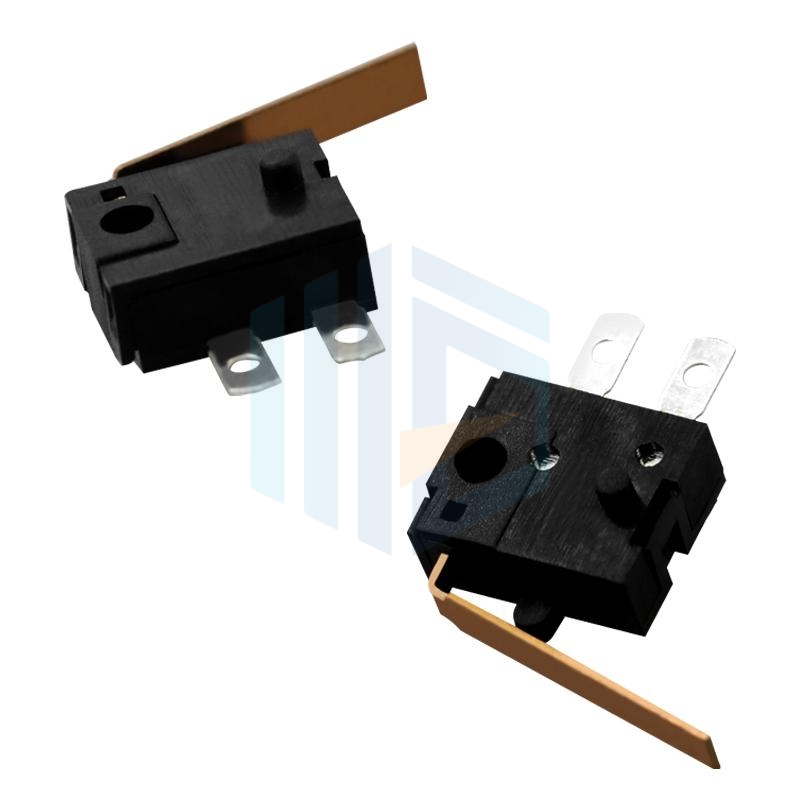

Limit switchModel：HQ-KFC-V-105S-2Specifications：6.5*3.9*3.4

  • Rated voltage: 16V (DC)
  • Rated current: 0.5A
  • Switch voltage: AC 250V(50Hz)/min
  • insulation resistance: ≥50MΩ
  • contact resistance: ≤200mΩ
  • Switch action force: 30g±10g
  • Electrical life: ≥ 20000cycles
  • notes: Support customization
Free Sample Application
Q Q：3264707058 Contacts：Guo Mindong Phone：+86-181 2433 8518/Same WeChat account
If you are unable to view the following content normally, please click on the left to download the PDF file or contact customer service. Thank you for your support!

Previous：Limit switch

Next：Limit switch
